cx::TabbedWidget Class Reference

Interface for making widgets with a hierarchy of tabs. More...

#include <cxTabbedWidget.h>

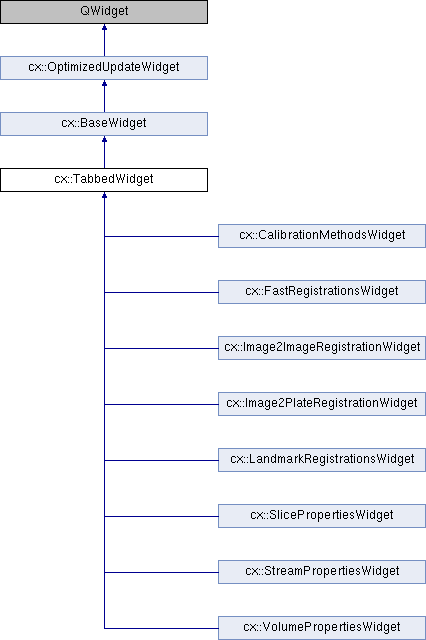

Inheritance diagram for cx::TabbedWidget:

Public Member Functions
	TabbedWidget (QWidget *parent, QString objectName, QString windowTitle)
virtual	~TabbedWidget ()
void	addTab (BaseWidget *newTab, QString newTabName)
void	insertWidgetAtTop (QWidget *newWidget)
virtual QString	defaultWhatsThis () const
	Returns a short description of what this widget will do for you. More...
Public Member Functions inherited from cx::BaseWidget
	BaseWidget (QWidget *parent, QString objectName, QString windowTitle)
virtual	~BaseWidget ()
QWidget *	createMethodWidget (QWidget *inputWidget, QWidget *outputWidget, QString methodname, bool inputChecked=false, bool outputVisible=true)
	Create a specialized widget for filters, with input/ouput, enable and options. More...
QGroupBox *	createGroupbox (QWidget *widget, QString boxname)
	Create a group box with a given name. More...
QGroupBox *	wrapInGroupBox (QWidget *base, QString name)
CXFrame *	wrapInFrame (QWidget *base)
template<class T >
QAction *	createAction (QObject *parent, QIcon iconName, QString text, QString tip, T slot, QLayout *layout=NULL, QToolButton *button=new QToolButton())
Public Member Functions inherited from cx::OptimizedUpdateWidget
	OptimizedUpdateWidget (QWidget *parent=NULL)
virtual	~OptimizedUpdateWidget ()

Protected Attributes
QTabWidget *	mTabWidget
QVBoxLayout *	mLayout

Additional Inherited Members
Public Slots inherited from cx::BaseWidget
void	adjustSizeSlot ()
Public Slots inherited from cx::OptimizedUpdateWidget
virtual void	setModified ()
Static Public Member Functions inherited from cx::BaseWidget
static QFrame *	createHorizontalLine ()
	Creates a horizontal line which can be inserted into widgets. More...
Protected Member Functions inherited from cx::BaseWidget
virtual void	showEvent (QShowEvent *event)
Protected Member Functions inherited from cx::OptimizedUpdateWidget
virtual void	prePaintEvent ()
virtual void	paintEvent (QPaintEvent *event)

Detailed Description

Interface for making widgets with a hierarchy of tabs.

Date

27. sep. 2010 \author Janne Beate Bakeng

Definition at line 55 of file cxTabbedWidget.h.

Constructor & Destructor Documentation

cx::TabbedWidget::TabbedWidget	(	QWidget *	parent,
		QString	objectName,
		QString	windowTitle
	)

Definition at line 42 of file cxTabbedWidget.cpp.

cx::TabbedWidget::~TabbedWidget ( )

virtual

Definition at line 55 of file cxTabbedWidget.cpp.

Member Function Documentation

void cx::TabbedWidget::addTab	(	BaseWidget *	newTab,
		QString	newTabName
	)

Definition at line 58 of file cxTabbedWidget.cpp.

QString cx::TabbedWidget::defaultWhatsThis ( ) const

virtual

Returns a short description of what this widget will do for you.

Implements cx::BaseWidget.

Reimplemented in cx::VolumePropertiesWidget, cx::SlicePropertiesWidget, cx::StreamPropertiesWidget, cx::CalibrationMethodsWidget, cx::Image2ImageRegistrationWidget, cx::FastRegistrationsWidget, cx::LandmarkRegistrationsWidget, and cx::Image2PlateRegistrationWidget.

Definition at line 90 of file cxTabbedWidget.cpp.

void cx::TabbedWidget::insertWidgetAtTop

(

QWidget *

newWidget

)

Definition at line 66 of file cxTabbedWidget.cpp.

Member Data Documentation

QVBoxLayout* cx::TabbedWidget::mLayout

protected

Definition at line 71 of file cxTabbedWidget.h.

QTabWidget* cx::TabbedWidget::mTabWidget

protected

Definition at line 70 of file cxTabbedWidget.h.

---

The documentation for this class was generated from the following files:

• /media/jenkins/slave_fs/ws/osr/TGT/ubuntu.12.04.x64/CX/CX/source/resource/widgets/cxTabbedWidget.h
• /media/jenkins/slave_fs/ws/osr/TGT/ubuntu.12.04.x64/CX/CX/source/resource/widgets/cxTabbedWidget.cpp
