cx::SelectDataStringPropertyBase Class Reference

#include <cxSelectDataStringPropertyBase.h>

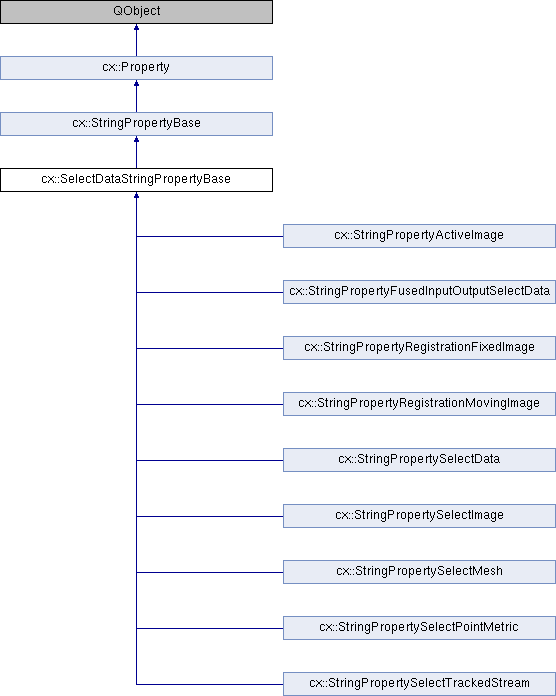

Inheritance diagram for cx::SelectDataStringPropertyBase:

Signals
void	dataChanged (QString)
Signals inherited from cx::Property
void	changed ()
	emit when the underlying data value is changed: The user interface will be updated. More...

Public Member Functions
virtual	~SelectDataStringPropertyBase ()
virtual QString	getDisplayName () const
	name of data entity. Used for display to user. More...
virtual QStringList	getValueRange () const
virtual QString	convertInternal2Display (QString internal)
	range of value. Use if data is constrained to a set. More...
virtual QString	getHelp () const
	return a descriptive help string for the data, used for example as a tool tip. More...
virtual DataPtr	getData () const
virtual void	setValueName (const QString name)
virtual void	setHelp (QString text)
Public Member Functions inherited from cx::StringPropertyBase
	StringPropertyBase ()
virtual	~StringPropertyBase ()
virtual QVariant	getValueAsVariant () const
virtual void	setValueFromVariant (QVariant val)
virtual QString	getUid () const
virtual bool	setValue (const QString &value)=0
	set the data value. More...
virtual QString	getValue () const =0
	get the data value. More...
virtual bool	isReadOnly () const
virtual bool	getAllowOnlyValuesInRange () const
virtual void	setGuiRepresentation (GuiRepresentation type)
virtual GuiRepresentation	getGuiRepresentation ()
Public Member Functions inherited from cx::Property
	Property ()
virtual	~Property ()
virtual bool	getEnabled () const
	Get the enabled/disabled state of the Property. More...
virtual bool	getAdvanced () const
	Set the advanced flag of the adapter. More...
virtual QString	getGroup () const
	Flag the adapter as part of a group. More...

Protected Member Functions
	SelectDataStringPropertyBase (PatientModelServicePtr patientModelService, QString typeRegexp=".*")
std::map< QString, DataPtr >	filterOnType (std::map< QString, DataPtr > input, QString regexp) const

Protected Attributes
QString	mTypeRegexp
QString	mValueName
QString	mHelp
PatientModelServicePtr	mPatientModelService
Protected Attributes inherited from cx::StringPropertyBase
GuiRepresentation	mGuiRepresentation
Protected Attributes inherited from cx::Property
bool	mEnabled
bool	mAdvanced
QString	mGroup

Additional Inherited Members
Public Types inherited from cx::StringPropertyBase
enum	GuiRepresentation { grSTRING, grFILENAME }
Public Slots inherited from cx::Property
virtual bool	setEnabled (bool enabled)
	Set the enabled/disabled state of the Property. More...
virtual bool	setAdvanced (bool advanced)
	Set the advanced flag of the adapter. More...
virtual bool	setGroup (QString name)
	Flag the adapter as part of a group. More...
Static Public Member Functions inherited from cx::Property
static PropertyPtr	findProperty (std::vector< PropertyPtr > properties, QString id)

Detailed Description

Base class for all Properties that selects a Data or descendants.

Date

2014-09-11

Author

Christian Askeland, SINTEF

Ole Vegard Solberg, SINTEF

Definition at line 53 of file cxSelectDataStringPropertyBase.h.

Constructor & Destructor Documentation

virtual cx::SelectDataStringPropertyBase::~SelectDataStringPropertyBase ( )

inlinevirtual

Definition at line 57 of file cxSelectDataStringPropertyBase.h.

cx::SelectDataStringPropertyBase::SelectDataStringPropertyBase ( PatientModelServicePtr  patientModelService, QString  typeRegexp = ".*"  )

explicitprotected

Construct base with a filter that determined allowed Data types based on their getType() return value. The default of ".*" means any type.

Definition at line 41 of file cxSelectDataStringPropertyBase.cpp.

Member Function Documentation

QString cx::SelectDataStringPropertyBase::convertInternal2Display ( QString  internal )

virtual

range of value. Use if data is constrained to a set.

conversion from internal value to display value

Reimplemented from cx::StringPropertyBase.

Reimplemented in cx::StringPropertyFusedInputOutputSelectData.

Definition at line 81 of file cxSelectDataStringPropertyBase.cpp.

void cx::SelectDataStringPropertyBase::dataChanged ( QString  )

signal

std::map< QString, DataPtr > cx::SelectDataStringPropertyBase::filterOnType ( std::map< QString, DataPtr >  input, QString  regexp  ) const

protected

Erase all data with type not conforming to input regexp.

Definition at line 53 of file cxSelectDataStringPropertyBase.cpp.

DataPtr cx::SelectDataStringPropertyBase::getData ( ) const

virtual

Reimplemented in cx::StringPropertySelectData, and cx::StringPropertyFusedInputOutputSelectData.

Definition at line 110 of file cxSelectDataStringPropertyBase.cpp.

QString cx::SelectDataStringPropertyBase::getDisplayName ( ) const

virtual

name of data entity. Used for display to user.

Implements cx::StringPropertyBase.

Reimplemented in cx::StringPropertyFusedInputOutputSelectData.

Definition at line 94 of file cxSelectDataStringPropertyBase.cpp.

QString cx::SelectDataStringPropertyBase::getHelp ( ) const

virtual

return a descriptive help string for the data, used for example as a tool tip.

Reimplemented from cx::StringPropertyBase.

Reimplemented in cx::StringPropertyFusedInputOutputSelectData.

Definition at line 89 of file cxSelectDataStringPropertyBase.cpp.

QStringList cx::SelectDataStringPropertyBase::getValueRange ( ) const

virtual

Reimplemented from cx::StringPropertyBase.

Reimplemented in cx::StringPropertyFusedInputOutputSelectData.

Definition at line 69 of file cxSelectDataStringPropertyBase.cpp.

void cx::SelectDataStringPropertyBase::setHelp ( QString  text )

virtual

Reimplemented in cx::StringPropertyFusedInputOutputSelectData.

Definition at line 99 of file cxSelectDataStringPropertyBase.cpp.

void cx::SelectDataStringPropertyBase::setValueName ( const QString  name )

virtual

Reimplemented in cx::StringPropertyFusedInputOutputSelectData.

Definition at line 104 of file cxSelectDataStringPropertyBase.cpp.

Member Data Documentation

QString cx::SelectDataStringPropertyBase::mHelp

protected

Definition at line 82 of file cxSelectDataStringPropertyBase.h.

PatientModelServicePtr cx::SelectDataStringPropertyBase::mPatientModelService

protected

Definition at line 84 of file cxSelectDataStringPropertyBase.h.

QString cx::SelectDataStringPropertyBase::mTypeRegexp

protected

Definition at line 80 of file cxSelectDataStringPropertyBase.h.

QString cx::SelectDataStringPropertyBase::mValueName

protected

Definition at line 81 of file cxSelectDataStringPropertyBase.h.

---

The documentation for this class was generated from the following files:

• /media/jenkins/slave_fs/ws/osr/TGT/ubuntu.12.04.x64/CX/CX/source/resource/core/properties/cxSelectDataStringPropertyBase.h
• /media/jenkins/slave_fs/ws/osr/TGT/ubuntu.12.04.x64/CX/CX/source/resource/core/properties/cxSelectDataStringPropertyBase.cpp
