cx::TrackingSystemService Class Reference

Tracking System Service. More...

#include <cxTrackingSystemService.h>

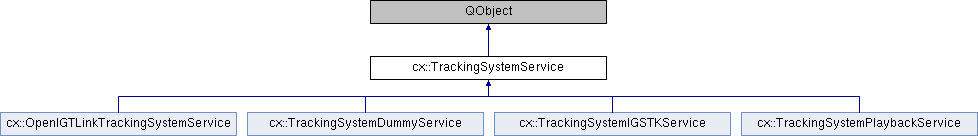

Inheritance diagram for cx::TrackingSystemService:

Signals
void	stateChanged ()

Public Member Functions
virtual	~TrackingSystemService ()
virtual QString	getUid () const =0
virtual Tool::State	getState () const =0
virtual void	setState (const Tool::State val)=0
	asynchronously request a state. Wait for signal stateChanged() More...
virtual std::vector< ToolPtr >	getTools ()=0
virtual TrackerConfigurationPtr	getConfiguration ()=0
virtual ToolPtr	getReference ()=0
	reference tool used by entire tracking service - NOTE: system fails if several TrackingSystemServices define this tool More...
virtual void	setLoggingFolder (QString loggingFolder)=0

Detailed Description

Tracking System Service.

Represents one tracking system consisting of a collection of tools. Several such may exist.

Date

2014-09-30

Author

Christian Askeland, SINTEF

Definition at line 24 of file cxTrackingSystemService.h.

Constructor & Destructor Documentation

virtual cx::TrackingSystemService::~TrackingSystemService ( )

inlinevirtual

Definition at line 28 of file cxTrackingSystemService.h.

Member Function Documentation

virtual TrackerConfigurationPtr cx::TrackingSystemService::getConfiguration ( )

pure virtual

Implemented in cx::TrackingSystemIGSTKService, cx::TrackingSystemPlaybackService, cx::OpenIGTLinkTrackingSystemService, and cx::TrackingSystemDummyService.

virtual ToolPtr cx::TrackingSystemService::getReference ( )

pure virtual

reference tool used by entire tracking service - NOTE: system fails if several TrackingSystemServices define this tool

Implemented in cx::TrackingSystemIGSTKService, cx::OpenIGTLinkTrackingSystemService, cx::TrackingSystemPlaybackService, and cx::TrackingSystemDummyService.

virtual Tool::State cx::TrackingSystemService::getState ( ) const

pure virtual

Implemented in cx::TrackingSystemIGSTKService, cx::TrackingSystemPlaybackService, cx::OpenIGTLinkTrackingSystemService, and cx::TrackingSystemDummyService.

virtual std::vector<ToolPtr> cx::TrackingSystemService::getTools ( )

pure virtual

Implemented in cx::TrackingSystemIGSTKService, cx::OpenIGTLinkTrackingSystemService, cx::TrackingSystemPlaybackService, and cx::TrackingSystemDummyService.

virtual QString cx::TrackingSystemService::getUid ( ) const

pure virtual

Implemented in cx::TrackingSystemIGSTKService, cx::OpenIGTLinkTrackingSystemService, cx::TrackingSystemPlaybackService, and cx::TrackingSystemDummyService.

virtual void cx::TrackingSystemService::setLoggingFolder ( QString  loggingFolder )

pure virtual

Parameters

loggingFolder

path to the folder where logs should be saved

Implemented in cx::TrackingSystemIGSTKService, cx::OpenIGTLinkTrackingSystemService, cx::TrackingSystemPlaybackService, and cx::TrackingSystemDummyService.

virtual void cx::TrackingSystemService::setState ( const Tool::State  val )

pure virtual

asynchronously request a state. Wait for signal stateChanged()

Implemented in cx::TrackingSystemIGSTKService, cx::TrackingSystemPlaybackService, cx::OpenIGTLinkTrackingSystemService, and cx::TrackingSystemDummyService.

void cx::TrackingSystemService::stateChanged ( )

signal

---

The documentation for this class was generated from the following file:

• /media/dev/bamboodrive/b/xml-data/build-dir/CX-RE-JOB1/CX/CX/source/resource/core/Tool/cxTrackingSystemService.h
