cx::ViewWrapper Class Reference

Superclass for ViewWrappers. More...

#include <cxViewWrapper.h>

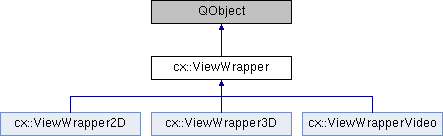

Inheritance diagram for cx::ViewWrapper:

Signals
void	orientationChanged (ORIENTATION_TYPE type)

Public Member Functions
virtual	~ViewWrapper ()
virtual void	initializePlane (PLANE_TYPE plane)
virtual ViewPtr	getView ()=0
virtual void	setSlicePlanesProxy (SlicePlanesProxyPtr proxy)=0
virtual void	setViewGroup (ViewGroupDataPtr group)
virtual void	updateView ()=0

Protected Slots
void	contextMenuSlot (const QPoint &point)
virtual void	dataViewPropertiesChangedSlot (QString uid)=0
virtual void	videoSourceChangedSlot (QString uid)

Protected Member Functions
	ViewWrapper (VisServicesPtr backend)
void	connectContextMenu (ViewPtr view)
virtual void	appendToContextMenu (QMenu &contextMenu)=0
QStringList	getAllDataNames (DataViewProperties properties) const

Protected Attributes
ViewGroupDataPtr	mGroupData
VisServicesPtr	mServices
DataViewPropertiesInteractorPtr	mDataViewPropertiesInteractor
DataViewPropertiesInteractorPtr	mShow3DSlicesInteractor

Detailed Description

Superclass for ViewWrappers.

Date

6. apr. 2010 \author jbake

Definition at line 93 of file cxViewWrapper.h.

Constructor & Destructor Documentation

virtual cx::ViewWrapper::~ViewWrapper ( )

inlinevirtual

Definition at line 97 of file cxViewWrapper.h.

cx::ViewWrapper::ViewWrapper ( VisServicesPtr  services )

protected

-----------------------------------------------------—

---

Definition at line 145 of file cxViewWrapper.cpp.

Member Function Documentation

virtual void cx::ViewWrapper::appendToContextMenu ( QMenu &  contextMenu )

protectedpure virtual

void cx::ViewWrapper::connectContextMenu ( ViewPtr  view )

protected

Definition at line 178 of file cxViewWrapper.cpp.

void cx::ViewWrapper::contextMenuSlot ( const QPoint &  point )

protectedslot

Definition at line 168 of file cxViewWrapper.cpp.

virtual void cx::ViewWrapper::dataViewPropertiesChangedSlot ( QString  uid )

protectedpure virtualslot

QStringList cx::ViewWrapper::getAllDataNames ( DataViewProperties  properties ) const

protected

Definition at line 183 of file cxViewWrapper.cpp.

virtual ViewPtr cx::ViewWrapper::getView ( )

pure virtual

Implemented in cx::ViewWrapper3D, cx::ViewWrapper2D, and cx::ViewWrapperVideo.

virtual void cx::ViewWrapper::initializePlane ( PLANE_TYPE  plane )

inlinevirtual

Reimplemented in cx::ViewWrapper2D.

Definition at line 98 of file cxViewWrapper.h.

void cx::ViewWrapper::orientationChanged ( ORIENTATION_TYPE  type )

signal

virtual void cx::ViewWrapper::setSlicePlanesProxy ( SlicePlanesProxyPtr  proxy )

pure virtual

Implemented in cx::ViewWrapper3D, cx::ViewWrapper2D, and cx::ViewWrapperVideo.

void cx::ViewWrapper::setViewGroup ( ViewGroupDataPtr  group )

virtual

Reimplemented in cx::ViewWrapper3D, cx::ViewWrapper2D, and cx::ViewWrapperVideo.

Definition at line 150 of file cxViewWrapper.cpp.

virtual void cx::ViewWrapper::updateView ( )

pure virtual

Implemented in cx::ViewWrapper2D, and cx::ViewWrapperVideo.

virtual void cx::ViewWrapper::videoSourceChangedSlot ( QString  uid )

inlineprotectedvirtualslot

Definition at line 111 of file cxViewWrapper.h.

Member Data Documentation

DataViewPropertiesInteractorPtr cx::ViewWrapper::mDataViewPropertiesInteractor

protected

Definition at line 122 of file cxViewWrapper.h.

ViewGroupDataPtr cx::ViewWrapper::mGroupData

protected

Definition at line 120 of file cxViewWrapper.h.

VisServicesPtr cx::ViewWrapper::mServices

protected

Definition at line 121 of file cxViewWrapper.h.

DataViewPropertiesInteractorPtr cx::ViewWrapper::mShow3DSlicesInteractor

protected

Definition at line 123 of file cxViewWrapper.h.

---

The documentation for this class was generated from the following files:

• /media/jenkins/bamboo/buildagent/xml-data/build-dir/FX-RE-JOB1/CX/CX/source/plugins/org.custusx.core.view/cxViewWrapper.h
• /media/jenkins/bamboo/buildagent/xml-data/build-dir/FX-RE-JOB1/CX/CX/source/plugins/org.custusx.core.view/cxViewWrapper.cpp
