cx::BaseWidget Class Reference

Interface for QWidget which handles widgets uniformly for the system. More...

#include <cxBaseWidget.h>

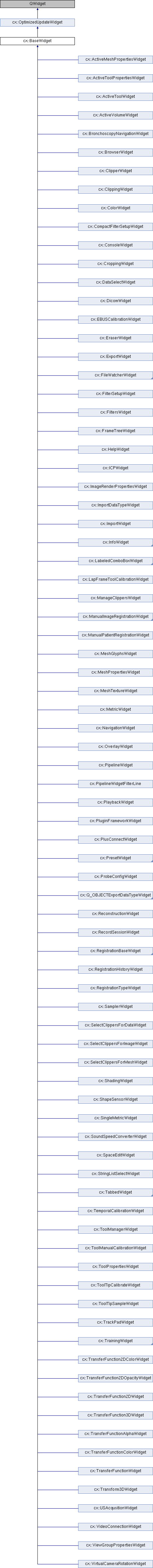

Inheritance diagram for cx::BaseWidget:
cx::OptimizedUpdateWidget cx::ActiveMeshPropertiesWidget cx::ActiveToolPropertiesWidget cx::ActiveToolWidget cx::ActiveVolumeWidget cx::BronchoscopyNavigationWidget cx::BrowserWidget cx::ClipperWidget cx::ClippingWidget cx::ColorWidget cx::CompactFilterSetupWidget cx::ConsoleWidget cx::CroppingWidget cx::DataSelectWidget cx::DicomWidget cx::EBUSCalibrationWidget cx::EraserWidget cx::ExportWidget cx::FileWatcherWidget cx::FilterSetupWidget cx::FiltersWidget cx::FrameTreeWidget cx::HelpWidget cx::ICPWidget cx::ImageRenderPropertiesWidget cx::ImportDataTypeWidget cx::ImportWidget cx::InfoWidget cx::LabeledComboBoxWidget cx::LapFrameToolCalibrationWidget cx::ManageClippersWidget cx::ManualImageRegistrationWidget cx::ManualPatientRegistrationWidget cx::MeshGlyphsWidget cx::MeshPropertiesWidget cx::MeshTextureWidget cx::MetricWidget cx::NavigationWidget cx::OverlayWidget cx::PipelineWidget cx::PipelineWidgetFilterLine cx::PlaybackWidget cx::PluginFrameworkWidget cx::PlusConnectWidget cx::PresetWidget cx::ProbeConfigWidget cx::Q_OBJECTExportDataTypeWidget cx::ReconstructionWidget cx::RecordSessionWidget cx::RegistrationBaseWidget cx::RegistrationHistoryWidget cx::RegistrationTypeWidget cx::SamplerWidget cx::SelectClippersForDataWidget cx::SelectClippersForImageWidget cx::SelectClippersForMeshWidget cx::ShadingWidget cx::ShapeSensorWidget cx::SingleMetricWidget cx::SoundSpeedConverterWidget cx::SpaceEditWidget cx::StringListSelectWidget cx::TabbedWidget cx::TemporalCalibrationWidget cx::ToolManagerWidget cx::ToolManualCalibrationWidget cx::ToolPropertiesWidget cx::ToolTipCalibrateWidget cx::ToolTipSampleWidget cx::TrackPadWidget cx::TrainingWidget cx::TransferFunction2DColorWidget cx::TransferFunction2DOpacityWidget cx::TransferFunction2DWidget cx::TransferFunction3DWidget cx::TransferFunctionAlphaWidget cx::TransferFunctionColorWidget cx::TransferFunctionWidget cx::Transform3DWidget cx::USAcqusitionWidget cx::VideoConnectionWidget cx::ViewGroupPropertiesWidget cx::VirtualCameraRotationWidget

Public Slots

void adjustSizeSlot ()

- Public Slots inherited from cx::OptimizedUpdateWidget
virtual void setModified ()


Public Member Functions

 BaseWidget (QWidget *parent, QString objectName, QString windowTitle)

virtual ~BaseWidget ()

QWidget * createMethodWidget (QWidget *inputWidget, QWidget *outputWidget, QString methodname, bool inputChecked=false, bool outputVisible=true)
 Create a specialized widget for filters, with input/ouput, enable and options. More...

QGroupBox * createGroupbox (QWidget *widget, QString boxname)
 Create a group box with a given name. More...

QGroupBox * wrapInGroupBox (QWidget *base, QString name)

CXFramewrapInFrame (QWidget *base)

QAction * createAction2 (QObject *parent, QIcon iconName, QString text, QString tip, QLayout *layout=NULL, QToolButton *button=new QToolButton())

template<class T >
QAction * createAction (QObject *parent, QIcon iconName, QString text, QString tip, T slot, QLayout *layout=NULL, QToolButton *button=new QToolButton())

- Public Member Functions inherited from cx::OptimizedUpdateWidget
 OptimizedUpdateWidget (QWidget *parent=NULL)

virtual ~OptimizedUpdateWidget ()

void forcePrePaint ()


Static Public Member Functions

static QFrame * createHorizontalLine ()
 Creates a horizontal line which can be inserted into widgets. More...


Protected Member Functions

virtual void showEvent (QShowEvent *event)

- Protected Member Functions inherited from cx::OptimizedUpdateWidget
virtual void prePaintEvent ()

virtual void paintEvent (QPaintEvent *event)


Detailed Description

Interface for QWidget which handles widgets uniformly for the system.

Date
28. sep. 2010
Author
Janne Beate Bakeng, SINTEF

Definition at line 88 of file cxBaseWidget.h.

Constructor & Destructor Documentation

◆ BaseWidget()

cx::BaseWidget::BaseWidget ( QWidget *  parent,
QString  objectName,
QString  windowTitle
)

Definition at line 23 of file cxBaseWidget.cpp.

◆ ~BaseWidget()

virtual cx::BaseWidget::~BaseWidget ( )
inlinevirtual

Definition at line 94 of file cxBaseWidget.h.

Member Function Documentation

◆ adjustSizeSlot

void cx::BaseWidget::adjustSizeSlot ( )
slot

Definition at line 91 of file cxBaseWidget.cpp.

◆ createAction()

template<class T >
QAction* cx::BaseWidget::createAction ( QObject *  parent,
QIcon  iconName,
QString  text,
QString  tip,
slot,
QLayout *  layout = NULL,
QToolButton *  button = new QToolButton()
)
inline

Shorthand method for action creation. If layout is used, a QToolButton is created and added to it. If tip is empty, it is set equal to text.

Definition at line 129 of file cxBaseWidget.h.

◆ createAction2()

QAction* cx::BaseWidget::createAction2 ( QObject *  parent,
QIcon  iconName,
QString  text,
QString  tip,
QLayout *  layout = NULL,
QToolButton *  button = new QToolButton()
)
inline

Shorthand method for action creation. If layout is used, a QToolButton is created and added to it. If tip is empty, it is set equal to text.

Definition at line 108 of file cxBaseWidget.h.

◆ createGroupbox()

QGroupBox * cx::BaseWidget::createGroupbox ( QWidget *  widget,
QString  boxname
)

Create a group box with a given name.

Definition at line 54 of file cxBaseWidget.cpp.

◆ createHorizontalLine()

QFrame * cx::BaseWidget::createHorizontalLine ( )
static

Creates a horizontal line which can be inserted into widgets.

Definition at line 66 of file cxBaseWidget.cpp.

◆ createMethodWidget()

QWidget * cx::BaseWidget::createMethodWidget ( QWidget *  inputWidget,
QWidget *  outputWidget,
QString  methodname,
bool  inputChecked = false,
bool  outputVisible = true
)

Create a specialized widget for filters, with input/ouput, enable and options.

Definition at line 31 of file cxBaseWidget.cpp.

◆ showEvent()

◆ wrapInFrame()

CXFrame * cx::BaseWidget::wrapInFrame ( QWidget *  base)

Definition at line 73 of file cxBaseWidget.cpp.

◆ wrapInGroupBox()

QGroupBox * cx::BaseWidget::wrapInGroupBox ( QWidget *  base,
QString  name
)

Definition at line 82 of file cxBaseWidget.cpp.


The documentation for this class was generated from the following files:
