Common functionality for Tool subclasses. More...

#include <cxToolImpl.h>

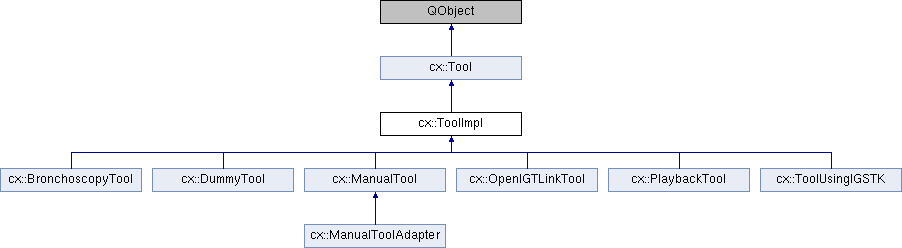

Inheritance diagram for cx::ToolImpl:

Public Member Functions
	ToolImpl (const QString &uid="", const QString &name="")

virtual	~ToolImpl ()

virtual TimedTransformMapPtr	getPositionHistory ()
	get historical positions More...

virtual TimedTransformMap	getSessionHistory (double startTime, double stopTime)

virtual Transform3D	get_prMt () const

virtual ToolPtr	getBaseTool ()

virtual ToolPositionMetadata	getMetadata () const

virtual const std::map< double, ToolPositionMetadata > &	getMetadataHistory ()

virtual double	getTooltipOffset () const

virtual void	setTooltipOffset (double val)

virtual void	resetTrackingPositionFilter (TrackingPositionFilterPtr filter)

virtual bool	isNull ()

virtual void	addXml (QDomNode &dataNode)

virtual void	parseXml (QDomNode &dataNode)

virtual vtkPolyDataPtr	getGraphicsPolyData () const
	get geometric 3D description More...

virtual bool	hasReferencePointWithId (QString id)

Public Member Functions inherited from cx::Tool
	Tool (const QString &uid="", const QString &name="")

virtual	~Tool ()

virtual bool	hasType (Type type) const

virtual bool	getVisible () const =0

virtual bool	isInitialized () const

virtual QString	getUid () const =0

virtual QString	getName () const =0

virtual bool	isCalibrated () const =0
	a tool may not be calibrated, then no tracking is allowed More...

virtual Transform3D	getCalibration_sMt () const =0
	get the calibration transform from tool space to sensor space (where the spheres or similar live) More...

virtual double	getTimestamp () const =0
	latest valid timestamp for the position matrix. 0 means indeterminate (for f.ex. manual tools) More...

virtual void	setVisible (bool vis)=0
	if available for this type, set visibility More...

Protected Member Functions
virtual void	set_prMt (const Transform3D &prMt, double timestamp)
	if available for this type, set pos, ts<0 means use current time More...

void	createToolGraphic ()

virtual std::set< Type >	getTypes () const

virtual std::map< QString, Vector3D >	getReferencePoints () const

virtual ToolFileParser::ToolInternalStructurePtr	getToolFileToolStructure () const

Protected Attributes
TimedTransformMapPtr	mPositionHistory

Transform3D	m_prMt
	the transform from the tool to the patient reference More...

TrackingPositionFilterPtr	mTrackingPositionFilter

std::map< double, ToolPositionMetadata >	mMetadata

vtkPolyDataPtr	mPolyData
	the polydata used to represent the tool graphically More...

Protected Attributes inherited from cx::Tool
QString	mUid

QString	mName

Additional Inherited Members
Public Types inherited from cx::Tool
enum	State { tsNONE =0, tsCONFIGURED, tsINITIALIZED, tsTRACKING }

enum	Type { TOOL_NONE, TOOL_REFERENCE, TOOL_MANUAL, TOOL_POINTER, TOOL_US_PROBE, TOOL_MICROSCOPE }

Signals inherited from cx::Tool
void	toolTransformAndTimestamp (Transform3D matrix, double timestamp)

void	toolVisible (bool visible)

void	tooltipOffset (double offset)

void	toolProbeSector ()

void	tps (int)

Static Public Member Functions inherited from cx::Tool
static vtkPolyDataPtr	createDefaultPolyDataCone ()

static ToolPtr	getNullObject ()

Detailed Description

Common functionality for Tool subclasses.

Date: 2014-02-21

Author: christiana

Definition at line 30 of file cxToolImpl.h.

Constructor & Destructor Documentation

◆ ToolImpl()

cx::ToolImpl::ToolImpl	(	const QString &	uid = `""`,
		const QString &	name = `""`
	)

explicit

Definition at line 24 of file cxToolImpl.cpp.

◆ ~ToolImpl()

cx::ToolImpl::~ToolImpl ( )

virtual

Definition at line 33 of file cxToolImpl.cpp.

Member Function Documentation

◆ addXml()

virtual void cx::ToolImpl::addXml ( QDomNode & dataNode )

inlinevirtual

Reimplemented in cx::ToolUsingIGSTK.

Definition at line 51 of file cxToolImpl.h.

◆ createToolGraphic()

void cx::ToolImpl::createToolGraphic ( )

protected

Definition at line 122 of file cxToolImpl.cpp.

◆ get_prMt()

Transform3D cx::ToolImpl::get_prMt ( ) const

virtual

Implements cx::Tool.

Reimplemented in cx::BronchoscopyTool, and cx::PlaybackTool.

Definition at line 92 of file cxToolImpl.cpp.

◆ getBaseTool()

ToolPtr cx::ToolImpl::getBaseTool ( )

virtual

Implements cx::Tool.

Reimplemented in cx::BronchoscopyTool.

Definition at line 97 of file cxToolImpl.cpp.

◆ getGraphicsPolyData()

vtkPolyDataPtr cx::ToolImpl::getGraphicsPolyData ( ) const

virtual

get geometric 3D description

Implements cx::Tool.

Reimplemented in cx::BronchoscopyTool, cx::ManualTool, cx::ManualToolAdapter, and cx::PlaybackTool.

Definition at line 140 of file cxToolImpl.cpp.

◆ getMetadata()

ToolPositionMetadata cx::ToolImpl::getMetadata ( ) const

virtual

Implements cx::Tool.

Definition at line 53 of file cxToolImpl.cpp.

◆ getMetadataHistory()

const std::map< double, ToolPositionMetadata > & cx::ToolImpl::getMetadataHistory ( )

virtual

Implements cx::Tool.

Definition at line 60 of file cxToolImpl.cpp.

◆ getPositionHistory()

TimedTransformMapPtr cx::ToolImpl::getPositionHistory ( )

virtual

get historical positions

Implements cx::Tool.

Reimplemented in cx::BronchoscopyTool, and cx::PlaybackTool.

Definition at line 78 of file cxToolImpl.cpp.

◆ getReferencePoints()

std::map< QString, Vector3D > cx::ToolImpl::getReferencePoints ( ) const

protectedvirtual

Reimplemented in cx::DummyTool, cx::BronchoscopyTool, cx::ManualTool, cx::PlaybackTool, and cx::ManualToolAdapter.

Definition at line 150 of file cxToolImpl.cpp.

◆ getSessionHistory()

TimedTransformMap cx::ToolImpl::getSessionHistory	(	double	startTime,
		double	stopTime
	)

virtual

Implements cx::Tool.

Reimplemented in cx::BronchoscopyTool, and cx::PlaybackTool.

Definition at line 83 of file cxToolImpl.cpp.

◆ getToolFileToolStructure()

virtual ToolFileParser::ToolInternalStructurePtr cx::ToolImpl::getToolFileToolStructure ( ) const

inlineprotectedvirtual

Reimplemented in cx::ToolUsingIGSTK, and cx::OpenIGTLinkTool.

Definition at line 68 of file cxToolImpl.h.

◆ getTooltipOffset()

double cx::ToolImpl::getTooltipOffset ( ) const

virtual

Reimplemented in cx::ToolUsingIGSTK, cx::BronchoscopyTool, cx::OpenIGTLinkTool, cx::ManualToolAdapter, and cx::PlaybackTool.

Definition at line 65 of file cxToolImpl.cpp.

◆ getTypes()

std::set< Tool::Type > cx::ToolImpl::getTypes ( ) const

protectedvirtual

Implements cx::Tool.

Reimplemented in cx::DummyTool, cx::BronchoscopyTool, cx::ManualTool, cx::ManualToolAdapter, and cx::PlaybackTool.

Definition at line 38 of file cxToolImpl.cpp.

◆ hasReferencePointWithId()

bool cx::ToolImpl::hasReferencePointWithId ( QString id )

virtual

Reimplemented from cx::Tool.

Reimplemented in cx::BronchoscopyTool, and cx::PlaybackTool.

Definition at line 145 of file cxToolImpl.cpp.

◆ isNull()

virtual bool cx::ToolImpl::isNull ( )

inlinevirtual

Implements cx::Tool.

Definition at line 49 of file cxToolImpl.h.

◆ parseXml()

virtual void cx::ToolImpl::parseXml ( QDomNode & dataNode )

inlinevirtual

Reimplemented in cx::ToolUsingIGSTK.

Definition at line 52 of file cxToolImpl.h.

◆ resetTrackingPositionFilter()

void cx::ToolImpl::resetTrackingPositionFilter ( TrackingPositionFilterPtr filter )

virtual

Implements cx::Tool.

Definition at line 117 of file cxToolImpl.cpp.

◆ set_prMt()

void cx::ToolImpl::set_prMt	(	const Transform3D &	prMt,
		double	timestamp
	)

protectedvirtual

if available for this type, set pos, ts<0 means use current time

Implements cx::Tool.

Reimplemented in cx::ManualTool, cx::ToolUsingIGSTK, cx::BronchoscopyTool, and cx::PlaybackTool.

Definition at line 102 of file cxToolImpl.cpp.

◆ setTooltipOffset()

void cx::ToolImpl::setTooltipOffset ( double val )

virtual

Reimplemented in cx::ToolUsingIGSTK, cx::BronchoscopyTool, cx::OpenIGTLinkTool, cx::ManualToolAdapter, and cx::PlaybackTool.

Definition at line 70 of file cxToolImpl.cpp.

Member Data Documentation

◆ m_prMt

Transform3D cx::ToolImpl::m_prMt

protected

the transform from the tool to the patient reference

Definition at line 61 of file cxToolImpl.h.

◆ mMetadata

std::map<double, ToolPositionMetadata> cx::ToolImpl::mMetadata

protected

Definition at line 63 of file cxToolImpl.h.

◆ mPolyData

vtkPolyDataPtr cx::ToolImpl::mPolyData

protected

the polydata used to represent the tool graphically

Definition at line 64 of file cxToolImpl.h.

◆ mPositionHistory

TimedTransformMapPtr cx::ToolImpl::mPositionHistory

protected

Definition at line 60 of file cxToolImpl.h.

◆ mTrackingPositionFilter

TrackingPositionFilterPtr cx::ToolImpl::mTrackingPositionFilter

protected

Definition at line 62 of file cxToolImpl.h.

The documentation for this class was generated from the following files:

/mnt/bamboo/bamboo/buildagent/xml-data/build-dir/NN-NI-BU2/CX/CX/source/resource/core/Tool/cxToolImpl.h
/mnt/bamboo/bamboo/buildagent/xml-data/build-dir/NN-NI-BU2/CX/CX/source/resource/core/Tool/cxToolImpl.cpp
