cx::AcquisitionService Class Reference

Acqusition services abstract interface. More...

#include <cxAcquisitionService.h>

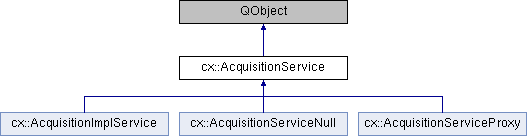

Inheritance diagram for cx::AcquisitionService:

Public Types
enum	STATE { sRUNNING = 0, sPOST_PROCESSING = 1, sNOT_RUNNING = 2 }

Signals
void	started ()
void	cancelled ()
void	stateChanged ()
void	usReadinessChanged ()
void	acquisitionStopped ()
void	recordedSessionsChanged ()
void	acquisitionDataReady ()
	emitted when data is acquired and sent to the reconstruction module More...
void	saveDataCompleted (QString mhdFilename)
	emitted when data has been saved to file More...

Public Member Functions
virtual	~AcquisitionService ()
virtual bool	isNull ()=0
virtual RecordSessionPtr	getLatestSession ()=0
virtual std::vector < RecordSessionPtr >	getSessions ()=0
virtual bool	isReady () const =0
virtual QString	getInfoText () const =0
virtual STATE	getState () const =0
virtual void	toggleRecord ()=0
virtual void	startRecord ()=0
virtual void	stopRecord ()=0
virtual void	cancelRecord ()=0
virtual void	startPostProcessing ()=0
virtual void	stopPostProcessing ()=0
virtual int	getNumberOfSavingThreads () const =0
RecordSessionPtr	getSession (QString uid)

Static Public Member Functions
static AcquisitionServicePtr	getNullObject ()

Detailed Description

Acqusition services abstract interface.

Date

2014-11-26

Author

Ole Vegard Solberg, SINTEF

Definition at line 57 of file cxAcquisitionService.h.

Member Enumeration Documentation

enum cx::AcquisitionService::STATE

Enumerator
sRUNNING
sPOST_PROCESSING
sNOT_RUNNING

Definition at line 63 of file cxAcquisitionService.h.

Constructor & Destructor Documentation

virtual cx::AcquisitionService::~AcquisitionService ( )

inlinevirtual

Definition at line 61 of file cxAcquisitionService.h.

Member Function Documentation

void cx::AcquisitionService::acquisitionDataReady ( )

signal

emitted when data is acquired and sent to the reconstruction module

void cx::AcquisitionService::acquisitionStopped ( )

signal

void cx::AcquisitionService::cancelled ( )

signal

virtual void cx::AcquisitionService::cancelRecord ( )

pure virtual

Implemented in cx::AcquisitionImplService, cx::AcquisitionServiceProxy, and cx::AcquisitionServiceNull.

virtual QString cx::AcquisitionService::getInfoText ( ) const

pure virtual

Implemented in cx::AcquisitionImplService, cx::AcquisitionServiceProxy, and cx::AcquisitionServiceNull.

virtual RecordSessionPtr cx::AcquisitionService::getLatestSession ( )

pure virtual

Implemented in cx::AcquisitionImplService, cx::AcquisitionServiceProxy, and cx::AcquisitionServiceNull.

AcquisitionServicePtr cx::AcquisitionService::getNullObject ( )

static

Definition at line 42 of file cxAcquisitionService.cpp.

virtual int cx::AcquisitionService::getNumberOfSavingThreads ( ) const

pure virtual

Implemented in cx::AcquisitionImplService, cx::AcquisitionServiceProxy, and cx::AcquisitionServiceNull.

RecordSessionPtr cx::AcquisitionService::getSession

(

QString

uid

)

Definition at line 50 of file cxAcquisitionService.cpp.

virtual std::vector<RecordSessionPtr> cx::AcquisitionService::getSessions ( )

pure virtual

Implemented in cx::AcquisitionImplService, cx::AcquisitionServiceProxy, and cx::AcquisitionServiceNull.

virtual STATE cx::AcquisitionService::getState ( ) const

pure virtual

Implemented in cx::AcquisitionImplService, cx::AcquisitionServiceProxy, and cx::AcquisitionServiceNull.

virtual bool cx::AcquisitionService::isNull ( )

pure virtual

Implemented in cx::AcquisitionImplService, cx::AcquisitionServiceProxy, and cx::AcquisitionServiceNull.

virtual bool cx::AcquisitionService::isReady ( ) const

pure virtual

Implemented in cx::AcquisitionImplService, cx::AcquisitionServiceProxy, and cx::AcquisitionServiceNull.

void cx::AcquisitionService::recordedSessionsChanged ( )

signal

void cx::AcquisitionService::saveDataCompleted ( QString  mhdFilename )

signal

emitted when data has been saved to file

void cx::AcquisitionService::started ( )

signal

virtual void cx::AcquisitionService::startPostProcessing ( )

pure virtual

Implemented in cx::AcquisitionImplService, cx::AcquisitionServiceProxy, and cx::AcquisitionServiceNull.

virtual void cx::AcquisitionService::startRecord ( )

pure virtual

Implemented in cx::AcquisitionImplService, cx::AcquisitionServiceProxy, and cx::AcquisitionServiceNull.

void cx::AcquisitionService::stateChanged ( )

signal

virtual void cx::AcquisitionService::stopPostProcessing ( )

pure virtual

Implemented in cx::AcquisitionImplService, cx::AcquisitionServiceProxy, and cx::AcquisitionServiceNull.

virtual void cx::AcquisitionService::stopRecord ( )

pure virtual

Implemented in cx::AcquisitionImplService, cx::AcquisitionServiceProxy, and cx::AcquisitionServiceNull.

virtual void cx::AcquisitionService::toggleRecord ( )

pure virtual

Implemented in cx::AcquisitionImplService, cx::AcquisitionServiceProxy, and cx::AcquisitionServiceNull.

void cx::AcquisitionService::usReadinessChanged ( )

signal

---

The documentation for this class was generated from the following files:

• /media/jenkins/slave_fs/ws/osr/TGT/ubuntu.12.04.x64/CX/CX/source/plugins/org.custusx.acquisition/cxAcquisitionService.h
• /media/jenkins/slave_fs/ws/osr/TGT/ubuntu.12.04.x64/CX/CX/source/plugins/org.custusx.acquisition/cxAcquisitionService.cpp
